Part#: 69JF9LY2C
FURNAS HUBBELL PRESSURE SWITCH W/ UNLOADER VALVE AND ON/OFF LEVER. 4-PORT.
Features:
FURNAS HUBBELL PRESSURE SWITCH W/ UNLOADER VALVE AND ON/OFF LEVER. 4-PORT.
Features:
·
3 and 5 HP 200 PSI maximum
·
Improved unloader valve design
·
Several terminal options
·
Optional bottom cable entry
·
Various pipe locations
Specs:
·
Cut-In PSI: 140
Cut-Out PSI: 175
PSI Open/Close: 140/175 psi
Differential: 30 to 40 psi
Size: 1/4″
Connection Type: Female NPT
Cut-Out PSI: 175
PSI Open/Close: 140/175 psi
Differential: 30 to 40 psi
Size: 1/4″
Connection Type: Female NPT
WE SELL, SERVICE AND MAINTAIN AIR COMPRESSORS IN DALLAS, TEXAS.
69JF9LY2C
| SKU | 69JF9LY2C |
| Min. Close Cut-In | 100 psi |
| Max. Open Cut-Out | 175 psi |
| 1 Phase - 120V | 1 1/2 |
| 1 Phase - 240V | 2 |
| 3 Phase - 240V | 3 |
| Auto-Off Disconnect Lever | Y |
| Unloader Valve | Y |
| 4 Port Manifold (each port is 1/4" Female NPT) | Y |

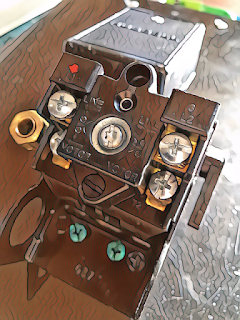

New Furnas Hubbell Siemens pressure switch
69JF9LY2C
1: Amps.. Amps.. Amps, is the number 1 factor in matching the correct switch for your application. Pressure switches will run from 12 volts through 600 Volts. Amps are the most important. If you ARE using a magnetic starter, any standard pressure switch will work fine with your application. The magnetic starter is taking 90+% of the load.
2: What pressure do you need the compressor to Cut in & Cut out at. Most pressure switches come 2 ways from the factory. 95-125 or 140-175. You can adjust the pressure by simply adjusting the screw.
3: The unloader is the smaller 1/8" fitting that comes out of the side of the pressure switch. It normally connects to the check valve that’s located in your tank through copper tubing.
4: Almost all pressure switches come 1 of 2 ways. Either Single Port connection or Four Port Connection. The Four port connection allows you the ability of connecting other accessory items to your pressure switch, example.. gauge, safety valve, regulator.
| Model Number | 69JF9LY |
| Cut-In (PSI) | 140 |
| Cut-Out (PSI) | 175 |
| Availability | In Stock |
214-428-2868
| SKU | 69JF7LY |
| Min. Close Cut-In | 50 psi |
| Max. Open Cut-Out | 145 psi |
| 1 Phase - 120V | 1 1/2 |
| 1 Phase - 240V | 2 |
| 3 Phase - 240V | 3 |
| Auto-Off Disconnect Lever | Y |
| Unloader Valve | Y |
| 4 Port Manifold (each port is 1/4" Female NPT) | N |
Pressure Switches - Square D™ NEMA, Classes
9012, 9013, 9016, 9036, 9037, and 9038 - 9013FHG14J52M1X
| range of product |
Square D Pumptrol
|
| pressure sensor name |
9013FH
|
| pressure sensor size |
150 psi
|
| value of setting |
Off at 125 psi
|
| electrical circuit type |
Power circuit
|
| product specific application |
Control small electrically driven air
compressors
|
Application:
Used to Regulate the Tank Pressure Between Two Preset Values on Small
Electrically Driven Air Compressors Up to 175 PSI
UL Listed, CSA Certified and CE Approved
Silver Cad-Oxide Brazed Contact Provides
Superior Performance and Extends the Life of the Switch
1/4" Female NPT Standard
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
| HUBBELL | PRESSURE SWITCH | 69JF6 |
| HUBBELL | PRESSURE SWITCH | 69JF6L |
| HUBBELL | PRESSURE SWITCH | 69JF6LY |
| HUBBELL | PRESSURE SWITCH | 69JF6LY2C |
| HUBBELL | PRESSURE SWITCH | 69JF6Y |
| HUBBELL | PRESSURE SWITCH | 69JF7 |
| HUBBELL | PRESSURE SWITCH | 69JF7L |
| HUBBELL | PRESSURE SWITCH | 69JF7LY |
| HUBBELL | PRESSURE SWITCH | 69JF7LY2C |
| HUBBELL | PRESSURE SWITCH | 69JF7Y |
| HUBBELL | PRESSURE SWITCH | 69JF8 |
| HUBBELL | PRESSURE SWITCH | 69JF8L |
| HUBBELL | PRESSURE SWITCH | 69JF8LY |
| HUBBELL | PRESSURE SWITCH | 69JF8LY2C |
| HUBBELL | PRESSURE SWITCH | 69JF8Y |
| HUBBELL | PRESSURE SWITCH | 69JF9 |
| HUBBELL | PRESSURE SWITCH | 69JF9L |
| HUBBELL | PRESSURE SWITCH | 69JF9LY |
| HUBBELL | PRESSURE SWITCH | 69JF9LY2C |
| HUBBELL | PRESSURE SWITCH | 69JF9Y |
| HUBBELL | PRESSURE SWITCH | 69JG6 |
| HUBBELL | PRESSURE SWITCH | 69JG6L |
| HUBBELL | PRESSURE SWITCH | 69JG6LY |
| HUBBELL | PRESSURE SWITCH | 69JG6LY2C |
| HUBBELL | PRESSURE SWITCH | 69JG6Y |
| HUBBELL | PRESSURE SWITCH | 69JG7 |
| HUBBELL | PRESSURE SWITCH | 69JG7L |
| HUBBELL | PRESSURE SWITCH | 69JG7LY |
| HUBBELL | PRESSURE SWITCH | 69JG7LY2C |
| HUBBELL | PRESSURE SWITCH | 69JG7Y |
| HUBBELL | PRESSURE SWITCH | 69JG8 |
| HUBBELL | PRESSURE SWITCH | 69JG8L |
| HUBBELL | PRESSURE SWITCH | 69JG8LY |
| HUBBELL | PRESSURE SWITCH | 69JG8LY2C |
| HUBBELL | PRESSURE SWITCH | 69JG8Y |
| HUBBELL | PRESSURE SWITCH | 69JG9 |
| HUBBELL | PRESSURE SWITCH | 69JG9L |
| HUBBELL | PRESSURE SWITCH | 69JG9LY |
| HUBBELL | PRESSURE SWITCH | 69JG9LY2C |
| HUBBELL | PRESSURE SWITCH | 69JG9Y |
| HUBBELL | PRESSURE SWITCH | 69HA1 |
| HUBBELL | PRESSURE SWITCH | 69HA2 |
| HUBBELL | PRESSURE SWITCH | 69HA3 |
| HUBBELL | PRESSURE SWITCH | 69HAU1 |
| HUBBELL | PRESSURE SWITCH | 69HAU2 |
| HUBBELL | PRESSURE SWITCH | 69HAU3 |
| HUBBELL | PRESSURE SWITCH | 69HB1 |
| HUBBELL | PRESSURE SWITCH | 69HB2 |
| HUBBELL | PRESSURE SWITCH | 69HB3 |
| HUBBELL | PRESSURE SWITCH | 69HBU1 |
| HUBBELL | PRESSURE SWITCH | 69HBU2 |
| HUBBELL | PRESSURE SWITCH | 69HBU3 |
Application: Used to Regulate the Tank
Pressure Between Two Preset Valves Up to 250 PSI
·
UL Listed, CSA Certified, and CE Approved
·
Designed for Demanding Requirements of Larger
Heavy Duty Commercial Compressors
·
Sturdy Painted Steel Case and Cover Resist
Harsh Conditions
·
3/8" Female NPT Standard
·
Rated for Both 50/60Hz Operation
Options :
·
NEMA 3 Outdoor Weather Proof Enclosure
·
NEMA 4 Watertight Enclosure
VISIT OUR SITE AT:
WWW.HKAIRCOMPRESSORS.COM
214-428-2868
FOR AIR COMPRESSOR SERVICE, SALES AND ROUTINE MAINTENANCE ON ALL AIR COMPRESSORS WITHIN THE DALLAS, FORT WORTH AREA.
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
| Model | Cut-In | Cut-Out | List |
| Number | (PSI) | (PSI) | Price |
| Pressure Switches - Air | |||
| 69MB6 | 80 | 100 | $79.95 |
| 69JF6 | 80 | 100 | $79.95 |
| 69MB6L | 80 | 100 | $79.95 |
| 69MB6LY | 80 | 100 | $79.95 |
| 69JF6LY | 80 | 100 | $79.95 |
| 69MB6LY2C | 80 | 100 | $79.95 |
| 69MB6Y | 80 | 100 | $79.95 |
| 69MB6YZ30-50 | 30 | 50 | $79.95 |
| 69JF6Y | 80 | 100 | $79.95 |
| 69MB7 | 95 | 125 | $79.95 |
| 69JF7 | 95 | 125 | $79.95 |
| 69MB7L | 95 | 125 | $79.95 |
| 69JF7L | 95 | 125 | $79.95 |
| 69MB7LY | 95 | 125 | $79.95 |
| 69JF7LY | 95 | 125 | $79.95 |
| 69MB7LY2A | 95 | 125 | $79.95 |
| 69JF7LY2A | 95 | 125 | $79.95 |
| 69MB7LY2C | 95 | 125 | $79.95 |
| 69JF7LY2C | 95 | 125 | $79.95 |
| 69MB7Y | 95 | 125 | $79.95 |
| 69JF7Y | 95 | 125 | $79.95 |
| 69MB7Y2C | 95 | 125 | $79.95 |
| 69MB8 | 115 | 150 | $79.95 |
| 69JF8 | 115 | 150 | $79.95 |
| 69MB8L | 115 | 150 | $79.95 |
| 69MB8LY | 115 | 150 | $79.95 |
| 69JF8LY | 115 | 150 | $79.95 |
| 69MB8LY2C | 115 | 150 | $79.95 |
| 69JF8LY2C | 115 | 150 | $79.95 |
| 69MB8Y | 115 | 150 | $79.95 |
| 69JF8Y | 115 | 150 | $79.95 |
| 69MB8YZ140-175 | 140 | 175 | $79.95 |
| 69MB8Z140-175 | 140 | 175 | $79.95 |
| 69JF9 | 140 | 175 | $79.95 |
| 69JF92C | 140 | 175 | $79.95 |
| 69JF9LY | 140 | 175 | $79.95 |
| 69JF9LY2C | 140 | 175 | $79.95 |
| 69JF9Y | 140 | 175 | $79.95 |
| 69MC6 | 80 | 100 | $79.95 |
| 69JG6 | 80 | 100 | $79.95 |
| 69MC6L | 80 | 100 | $79.95 |
| 69MC6LY | 80 | 100 | $79.95 |
| 69JG6LY | 80 | 100 | $79.95 |
| 69MC6Y | 80 | 100 | $79.95 |
| 69JG6Y | 80 | 100 | $79.95 |
| 69MC7 | 95 | 125 | $79.95 |
| 69JG7 | 95 | 125 | $79.95 |
| 69MC7L | 95 | 125 | $79.95 |
| 69MC7LY | 95 | 125 | $79.95 |
| 69JG7LY | 95 | 125 | $79.95 |
| 69MC7LY2C | 95 | 125 | $79.95 |
| 69JG7LY2C | 95 | 125 | $79.95 |
| 69MC7Y | 95 | 125 | $79.95 |
| 69JG7Y | 95 | 125 | $79.95 |
| 69MC8 | 115 | 150 | $79.95 |
| 69JG8 | 115 | 150 | $79.95 |
| 69MC8L | 115 | 150 | $79.95 |
| 69MC8LY | 115 | 150 | $79.95 |
| 69JG8LY | 115 | 150 | $79.95 |
| 69MC8LY2C | 115 | 150 | $79.95 |
| 69JG8LY2C | 115 | 150 | $79.95 |
| 69MC8Y | 115 | 150 | $79.95 |
| 69JG8Y | 115 | 150 | $79.95 |
| 69JG9 | 140 | 175 | $79.95 |
| 69JG9LY | 140 | 175 | $79.95 |
| 69JG9LY2C | 140 | 175 | $79.95 |
| 69JG9Y | 140 | 175 | $79.95 |
| 69JG9Y2C | 140 | 175 | $79.95 |
| 69HA1 | 115 | 150 | $229 |
| 69HA12S | 115 | 150 | $229 |
| 69HA1Z140-175 | 140 | 175 | $229 |
| 69HAU1 | 115 | 150 | $229 |
| 69HAU12AZ140-175 | 140 | 175 | $229 |
| 69HAU1Z140-175 | 140 | 175 | $229 |
| 69HAU2 | 100 | 125 | $229 |
| 69HAU3 | 30 | 40 | $229 |
| 69HB1 | 115 | 150 | $229 |
| 69HBU1 | 115 | 150 | $229 |
| 69HB2 | 100 | 125 | $229 |
| 69HBU2 | 100 | 125 | $229 |
| 69HBU3 | 30 | 40 | $229 |
214-428-2868
214-428-2868
WWW.HKAIRCOMPRESSORS.COM
AIR COMPRESSOR
PRESSURE SWITCHES:
CALL: 214-428-2868
